Retracting rotating hydraulic gangway PI 390 - Retracting hydraulic gangways

PI 390

Retracting rotating hydraulic gangway for yachts e superyachts

Rotating gangway characterized by automatic telescopic movement , it is equipped with logic control for the re-entering phases and verification of the correct alignment of the segments. Consisting of three sections, it is supplied with an aluminum housing box with automatic movement of the hatch. The structures are available in two variants: in polished or powder-coated stainless steel, completed with teak grating platforms.
The swivel function of 50° port / starboard allows a comfortable use for boarding from the dock.
Supplied with remote control and cockpit control panel, its movement can also be managed from your smartphone by downloading the dedicated Besenzoni Control Device APP.

INFO REQUEST

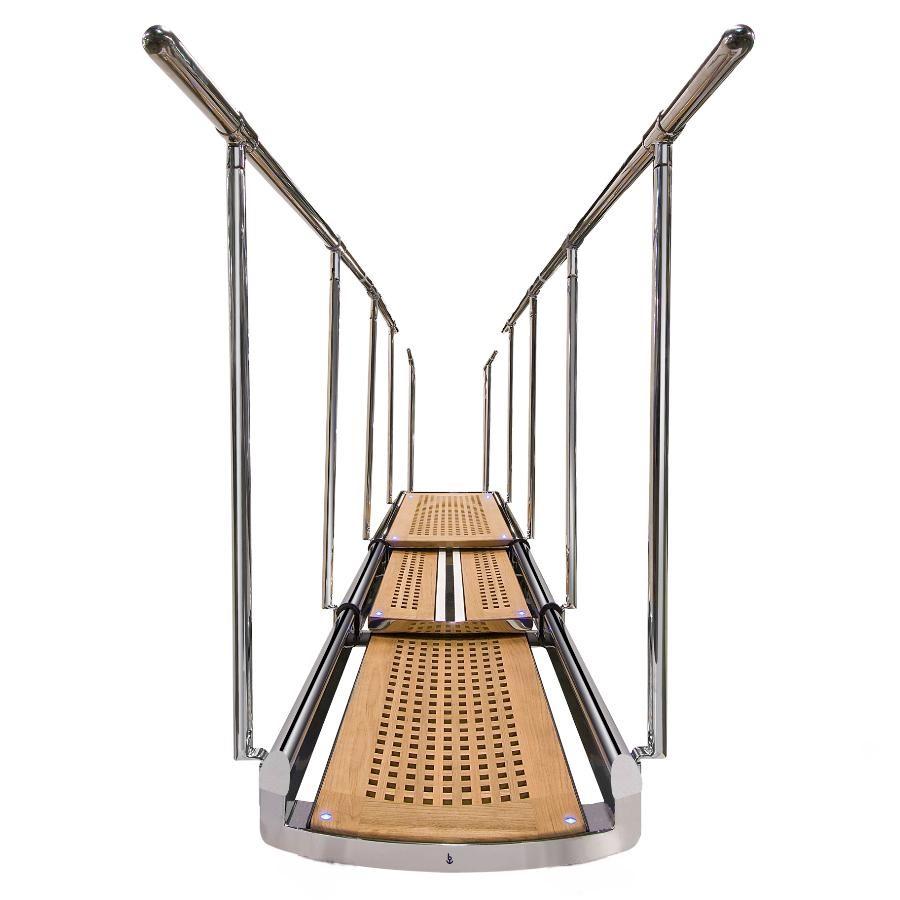

passerella per barche vista frontalamente

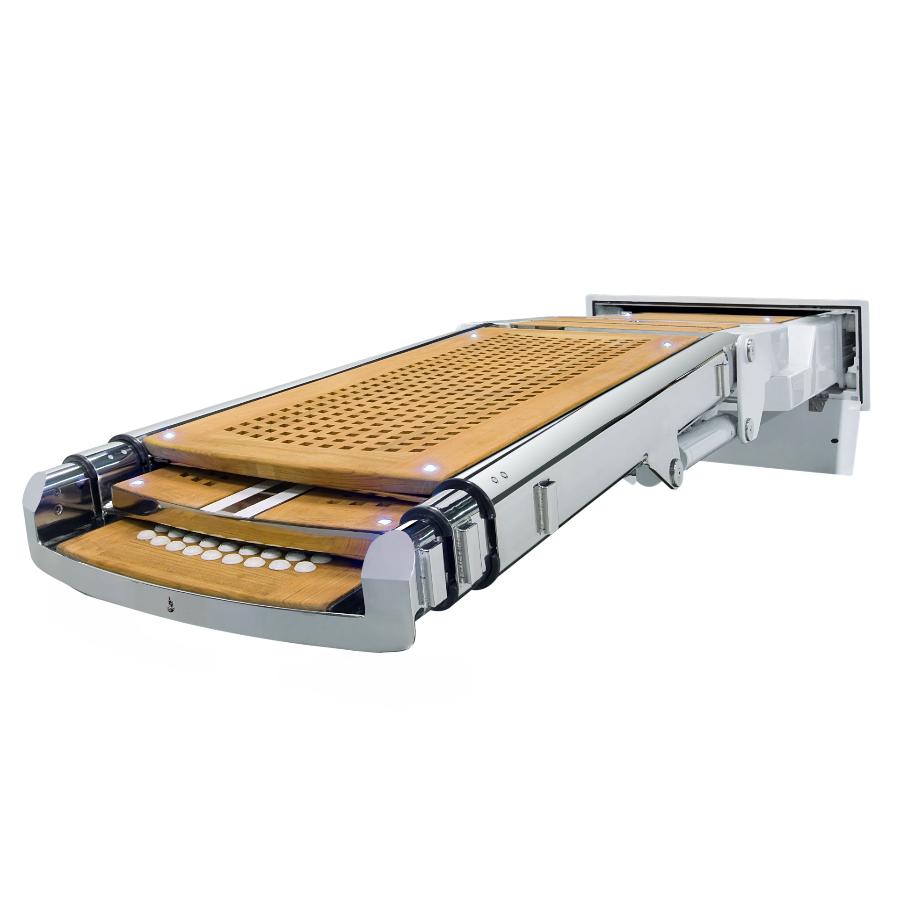

vista laterale della passerella chiusa per barche a motore

Optional: with swivel wheel set for the quay

PI 390

Technical data

• Retractable telescopic and rotating gangway, triple stage, with automatic function for retraction/extension, telescoping and elevation
• Rotation 50° port/starboard
• Structure made in polished or powder coated stainless steel
• Grating boardwalk made in teak
• Courtesy lighting
• Carriage extension to overcome the steps
• Aluminium housing box with automatic hatch. The weather resistant gangway box collects the cleaning and washing water only. It is not watertight.
• Mounting brackets included
• One row of automatic handrail and one row of manual removable stanchions standard
• Manual pump for emergency
• Remote and touchpad panel remote control to operate from the cockpit
• Lengths available from 330 to 550 cm
• Optional: with swivel wheel set for the quay
• Logic control system for the re-entering phases and verification of the correct alignment of the segments
• Optional: Double row of manual rigid removable stanchions
• Optional:Intercom / doorbell connection
• Optional:handling via smartphone by downloading the APP-Besenzoni Control Device and installing the control unit
