Retracting rotating hydraulic gangway PI 890 - Retracting hydraulic gangways

PI 890

Retracting rotating hydraulic gangway for yachts and superyachts

Retractable telescopic and rotating passerelle with four sections including initial carriage extension to overcome the step, particularly suitable for installation in the aft stairs. The rotation reaches 50° port /starboard and an inclination of 10° up/down: these characteristics make it perfect to board from the quay in complete safety. It also features a step with automatic movement to facilitate the entry on board avoiding any differences in height between the gangway and the yacht's deck.
The automatic telescopic movement is equipped with control logic for the return phases and verification of the correct alignment of the segments.
The structure is in powder coated stainless steel and the walking platform has high quality teak grating with courtesy lights.

INFO REQUEST

Besenzoni PI 890 Passerella automatica telescopica rientrante e girevole con teak pieno

Piattaforma retrattile in acciaio AISI 316, dipinta di bianco, progettata per yacht e imbarcazioni

Pedana a scomparsa in acciaio AISI 316 verniciata bianco per yacht e imbarcazioni

Besenzoni PI 890 Passerella automatica telescopica rientrante e girevole a tre stadi,Carrello per il superamento del gradino e Sollevamento automatico del gradino di ingresso

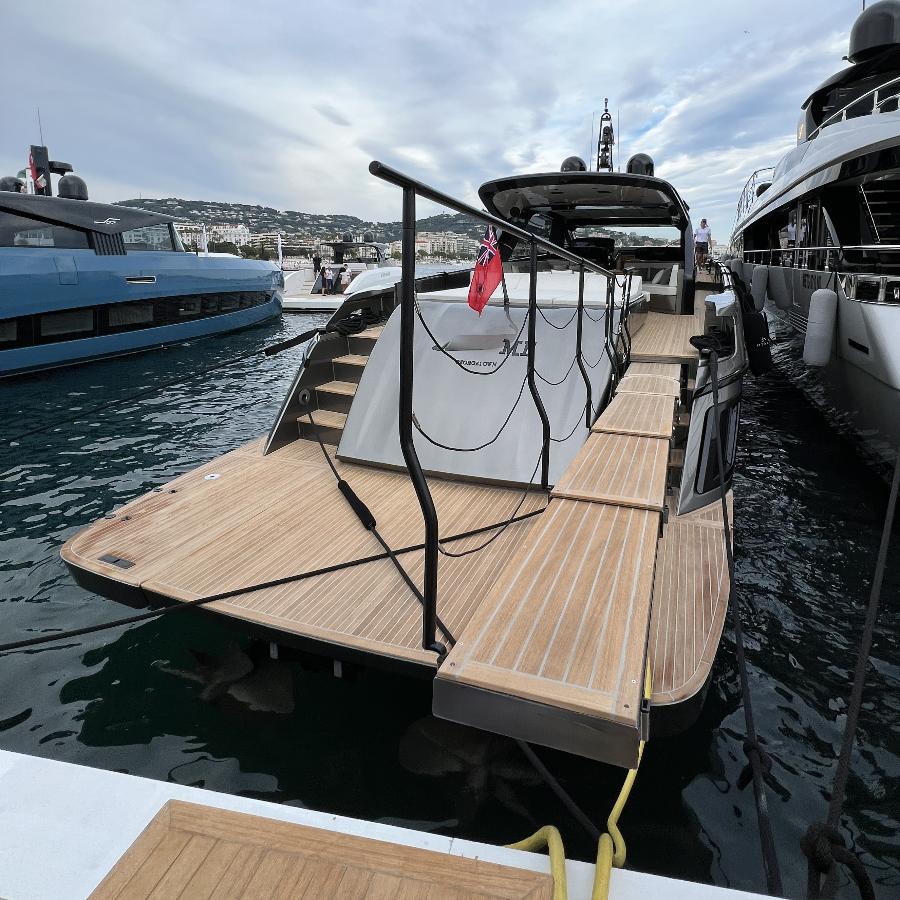

pedana telescopica e girevole per yacht tutta aperta

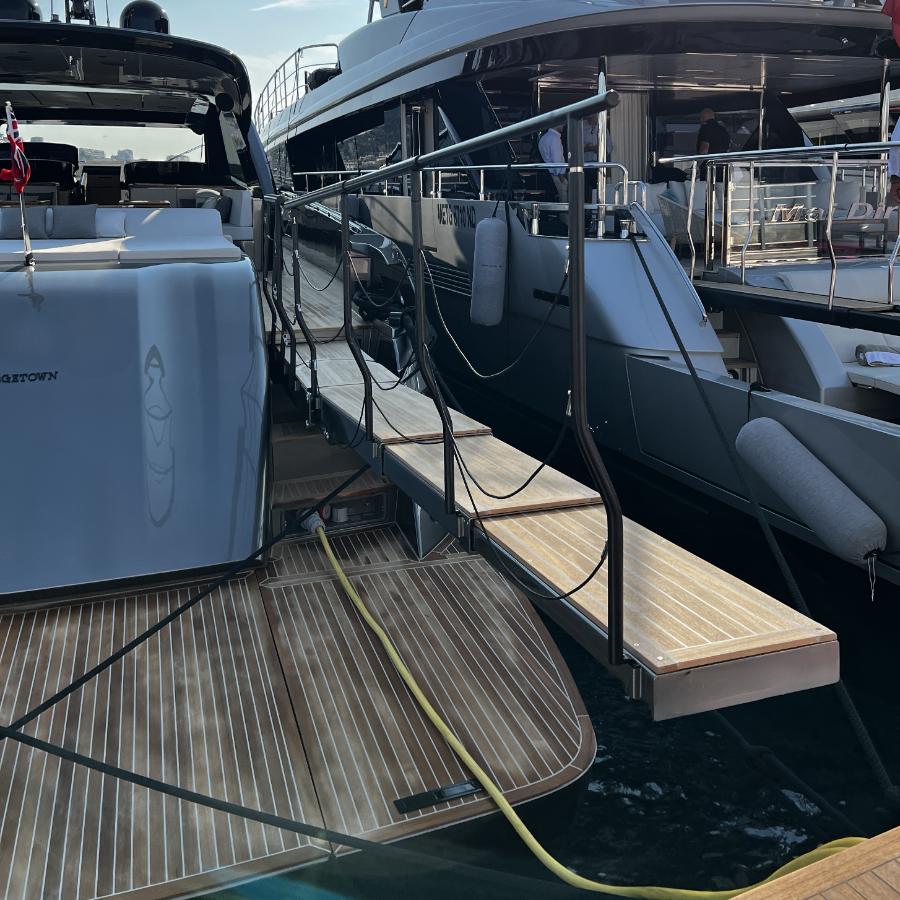

pedana telescopica e girevole per yacht vista frontale

PI 890

Technical data

• Retractable telescopic and rotating gangway, double or triple stage, with automatic function for retraction/extension, telescoping and elevation
• Structure made in powder coated stainless steel
• Grating boardwalk made in teak
• Courtesy lighting
• Carriage extension to overcome the steps
• Automatic pop-up step
• Logic control system for the re-entering phases and verification of the correct alignment of the segments
• Aluminium housing box with automatic hatch. The weather resistant gangway box collects the cleaning and washing water only. It is not watertight.
• Double row of manual removable rope rail stanchions
• Manual pump for emergency
• Remote and touchpad panel remote control to operate from the cockpit
• Length available 660 cm
• Optional: Double row of manual rigid removable stanchions
• Optional:Intercom / doorbell connection
• Optional:handling via smartphone by downloading the APP-Besenzoni Control Device and installing the control unit
Customization can be made within the possible variables
