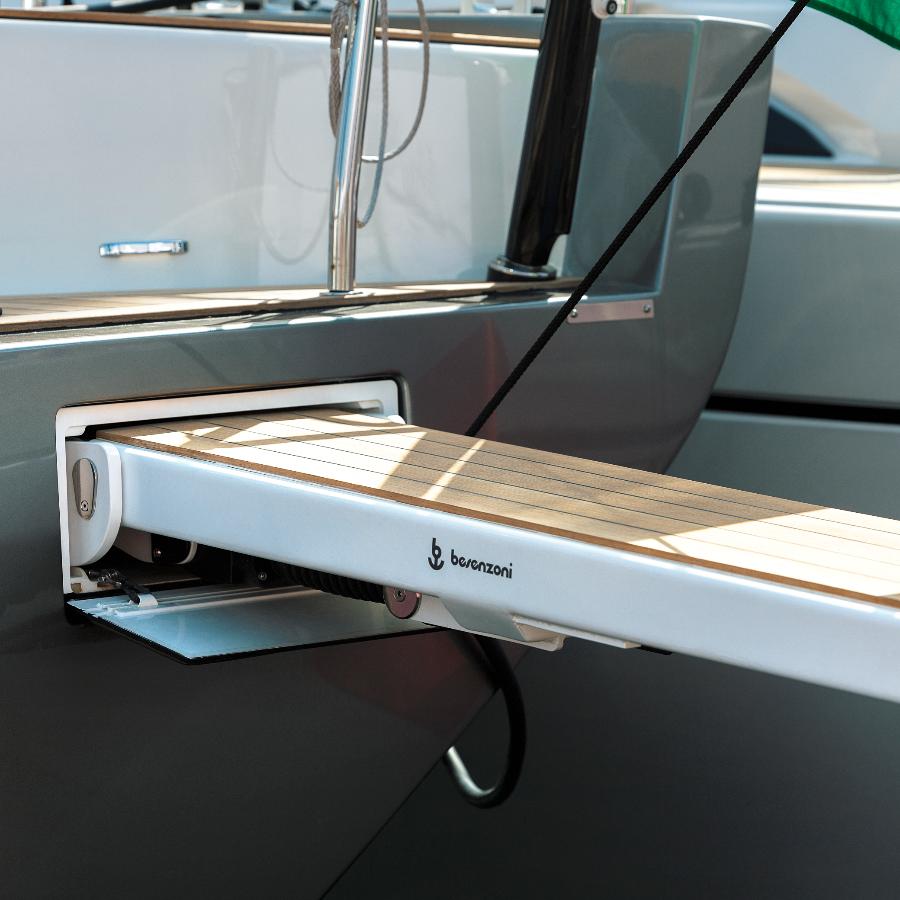

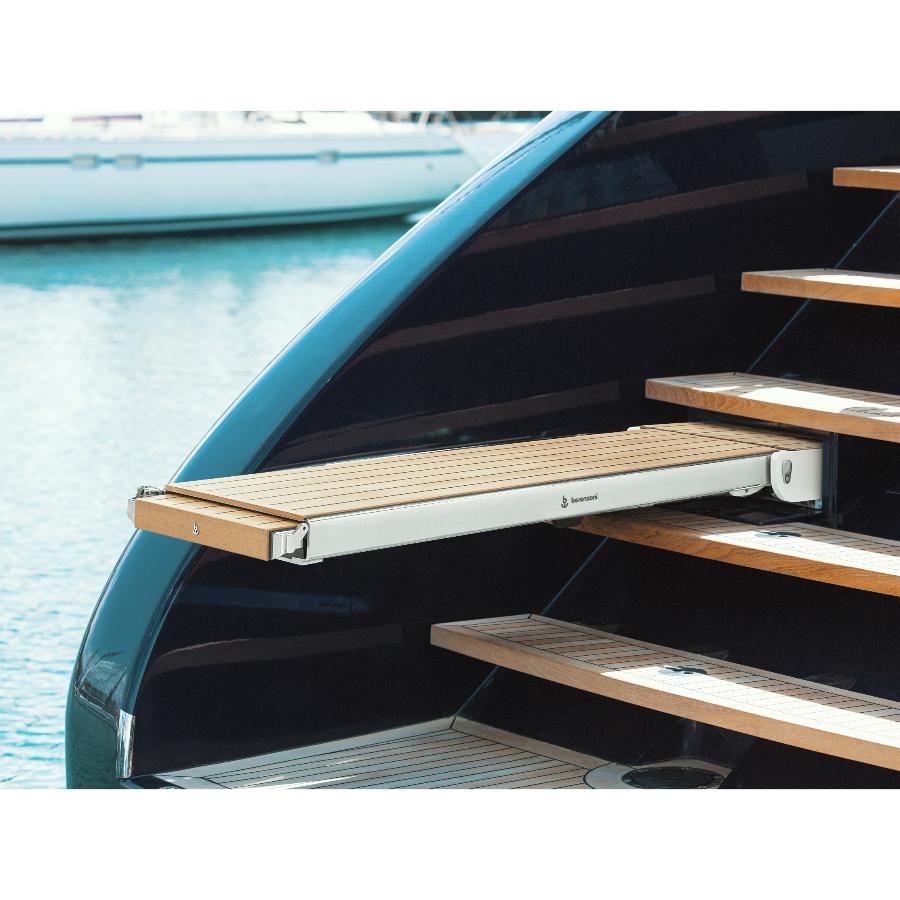

Retracting electric gangways for sail and motor boats
The fully electric automatic gangway PE 661-661C is currently available in 5 lengths ranging from 220 cm up to 340 cm. The pre-wired system guarantees quick and easy installation on board and the absence of a hydraulic unit allows a reduction of the overall weight of about 30 kg. The structure in polished or painted stainless steel has two telescopic sections and the PE 661C model has the initial carriage extension for overcoming the step and it moves forward the inclination point.
• Retractable telescopic gangway , double stage, with electric system • 12/24 voltage • Pre-wired system with n. 3 electric motors • Soft start management on all three movements • Slowdown and PWM control during the search for the horizontal centering position for better precision in the re-enter and exit phase • Structure made in polished or powder coated stainless steel • Footboard: - in teak with non-slip inserts - 100% ecological UV stabilized PVC synthetic material • Carriage extension available to overcome the steps on the model PE 661.C • Standard length of electrical cables from the bottom of the Box L = 1.5 MT • Aluminium housing box with automatic hatch, Box not watertight • Mounting brackets included • Automatic stanchions in polished steel with rope on one side • Operation with radio wave remote control and touchpad panel to operate from the cockpit • Ready for handling via smartphone by downloading the Besenzoni Control Device APP and installing the BUC White control unit • Overall dimensions of the electronic control unit 280x170xH = 100 mm. with radio antenna integrated in the system (compatible with radio remote control 6CS99047) • Optional: LED courtesy lights on the final fixed platform and under the front band (to be requested when ordering and not applicable afterwards) • Step on one persona at a time
