HYDRAULIC CRANE FOR GARAGE INSTALLATION G 424 - Hydraulic cranes for garage installation

G 424

Hydraulic crane for stern or garage installation

Besenzoni has engineered these models in order to satisfy those customers who want to install their davit on the stern, by keeping into consideration the different shapes of the modern boats. Therefore totally or partially disappearing davits are
made and also models to be fitted on the platform. Also, these davits are powder coated steel made with careening parts, composite made, for sights models. In our disappearing davits all aesthetic elements not essential for the safety and the functioning of the same are not installed. Cranes are supplied with dedicated hydraulic power pack and water resistant
handheld wired control.

INFO REQUEST

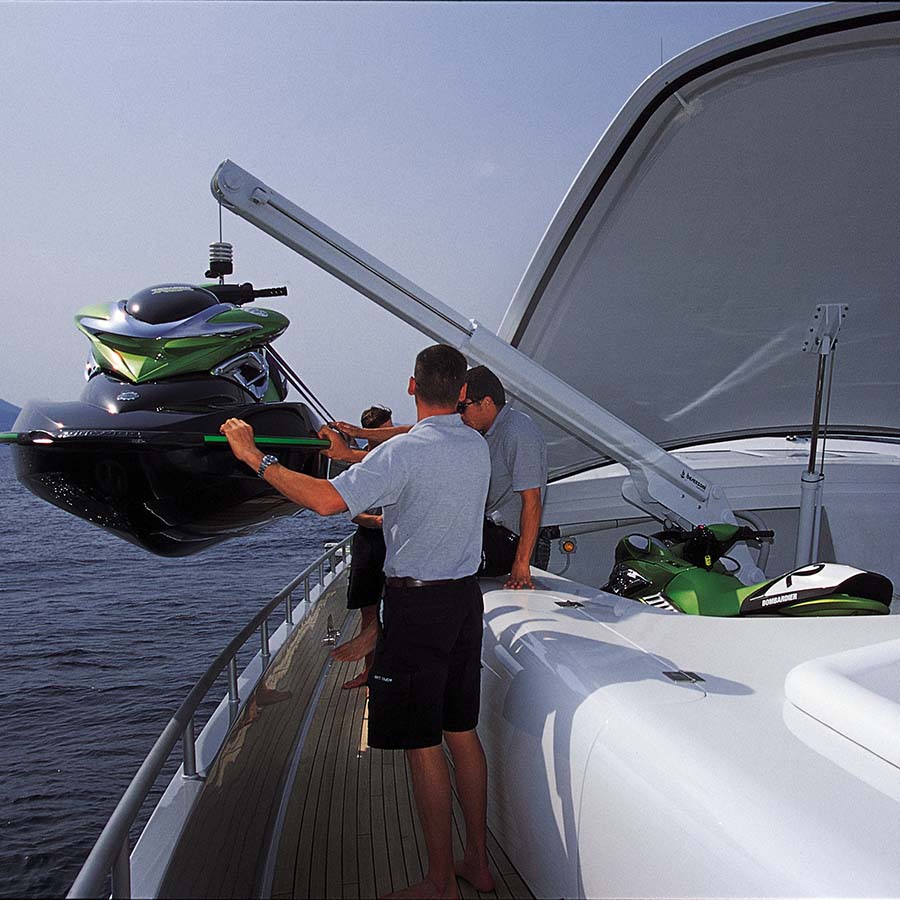

Gru idraulica con estensione telescopica e braccio inclinato, in fase di movimentazione di una moto d'acqua

Vista laterale della gru G 424 in acciaio inox verniciato bianco

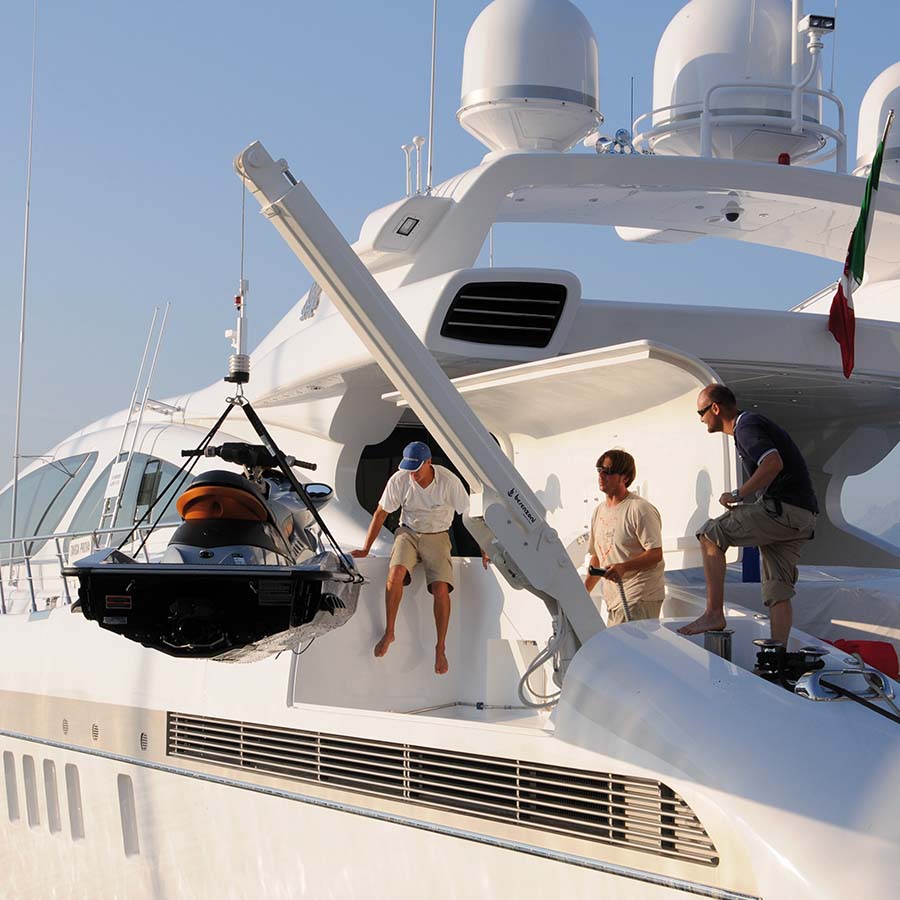

gru idraulica che sta manovrando una moto d'acqua utilizzando la sua estensione telescopica e il braccio inclinato

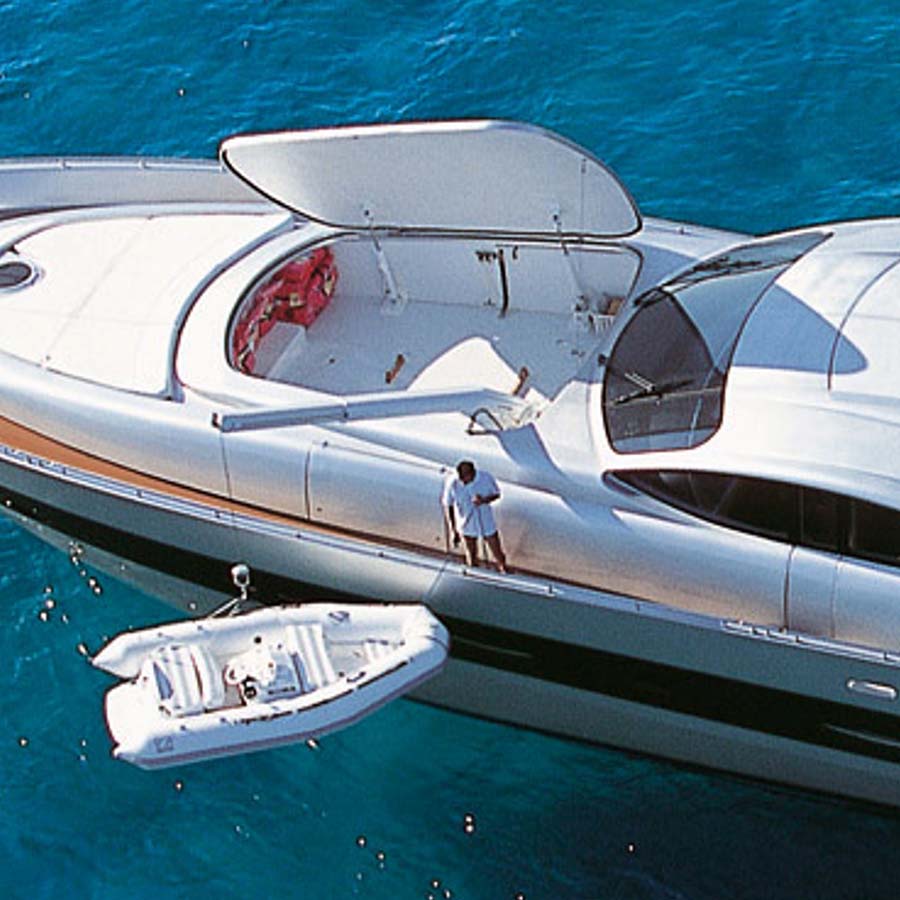

Movimentazione di un tender grazie alla gruetta idraulica

Vista laterale della gruetta idraulica G 424

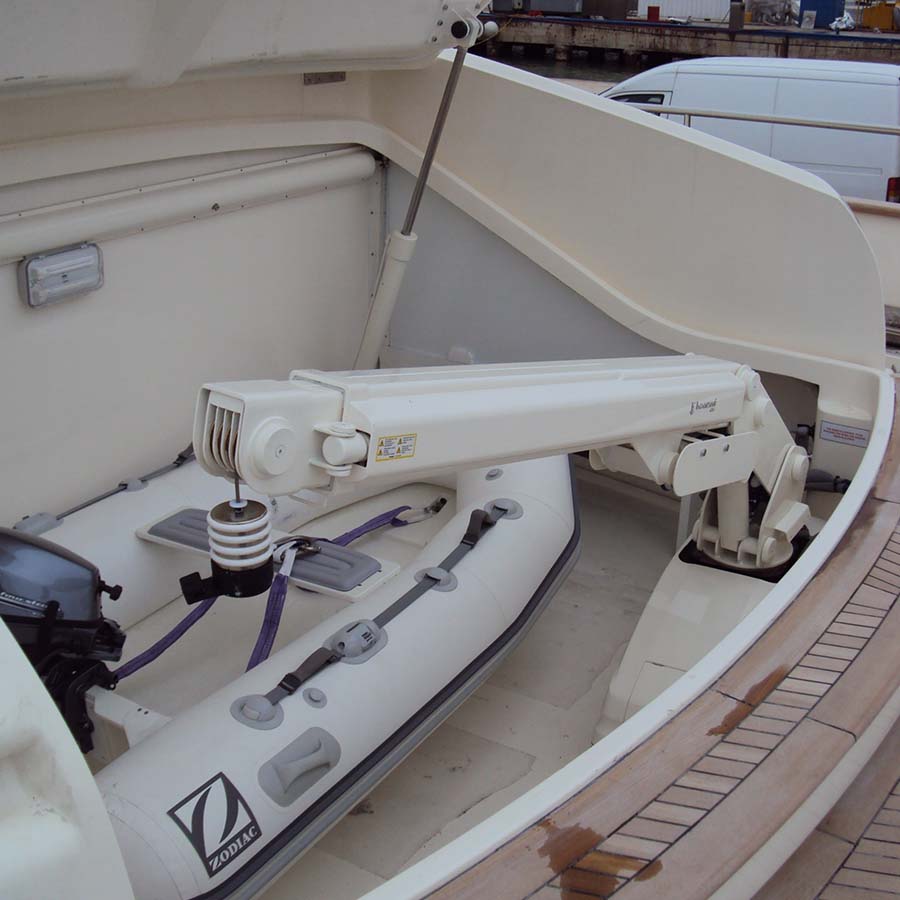

Gruetta idraulica e tender alloggiati nel garage di uno yacht

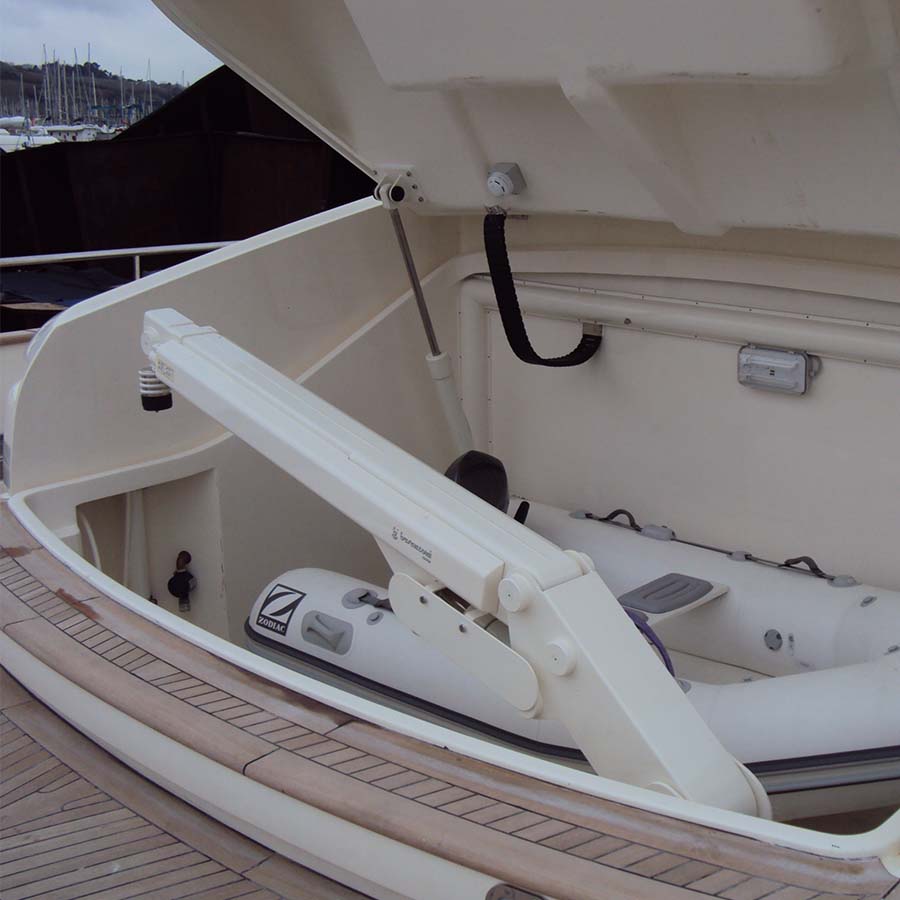

Gruetta idraulica stivata nel garage di un'imbarcazione da diporto

G 424

Lifting capacity up to 600 kg

• Hydraulic crane with telescopic and tilted boom
• Lifting Capacity from 400 up to 600 kg
• Suited for housing in the bow or stern garage
• Powder coated stainless steel structure
• Hydraulic movement for rotation, boom extension, raise/lower and cable rapping
• Slewing 180° ÷ 270°
• Counterweight with rubber inserts for cable tension
• Manual retaining system for cable weight whilst cruising
• Manual pump for emergency
• Warning buzzer signals when crane is in motion
• Water resistant handheld wired control

DOWNLOAD TECHNICAL SHEET DOWNLOAD CATALOG
