HYDRAULIC CRANE FOR FLYBRIDGE G 509 - Hydraulic cranes for flybridge

G 509

Hydraulic crane for flybridge

Hydraulic crane with telescopic extension, perfect for lifting water toys up to 500 kg in weight. Handling is hydraulic for the rotation (180 ° - 270 °), elevation, and extension of the telescopic boom to reach a length of 400 cm. The structure is in powder-coated stainless steel with molded fiberglass cowling for base and arm. 640 cm long cable. Supplied with manual pump in case of emergency and acoustic signaling system during the handling phases.

INFO REQUEST

Besenzoni Gru per yacht installabile sul flybridge G509 sul ponte

gru per barche da installare sul flybridge

Besenzoni Gru per yacht installabile sul flybridge G509

Besenzoni Gru per yacht installabile sul flybridge G509 vista laterale

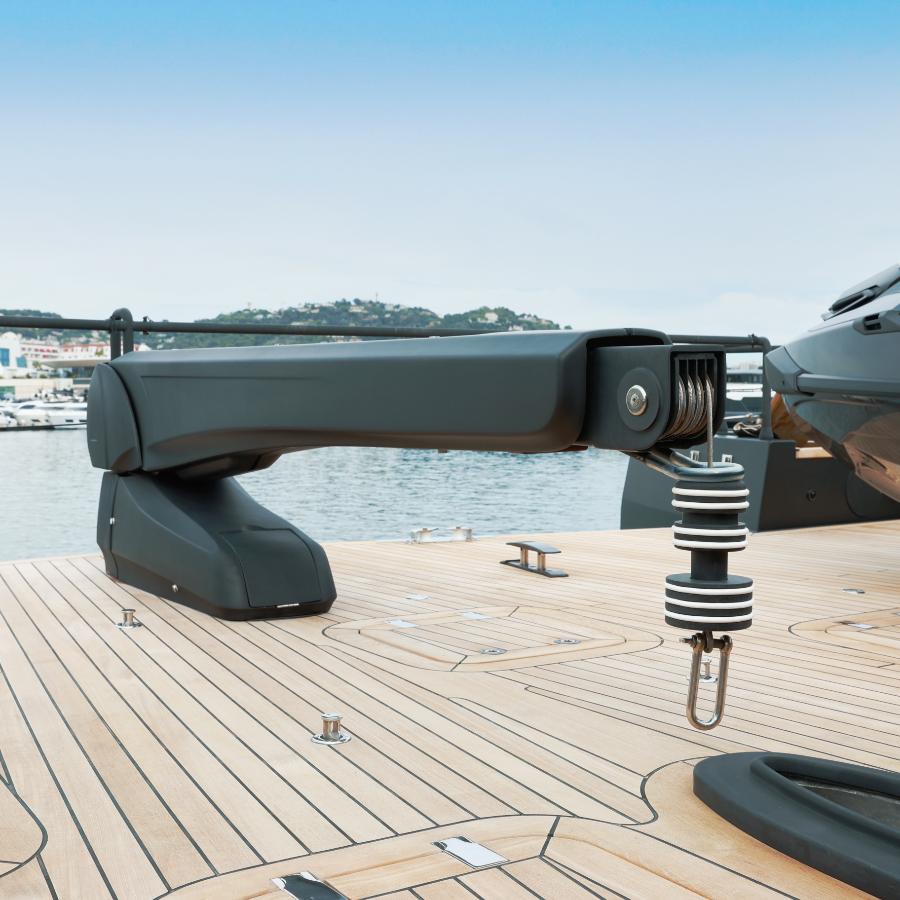

gru per yacht struttura in acciaio veniciato nero con portata di 500 kg

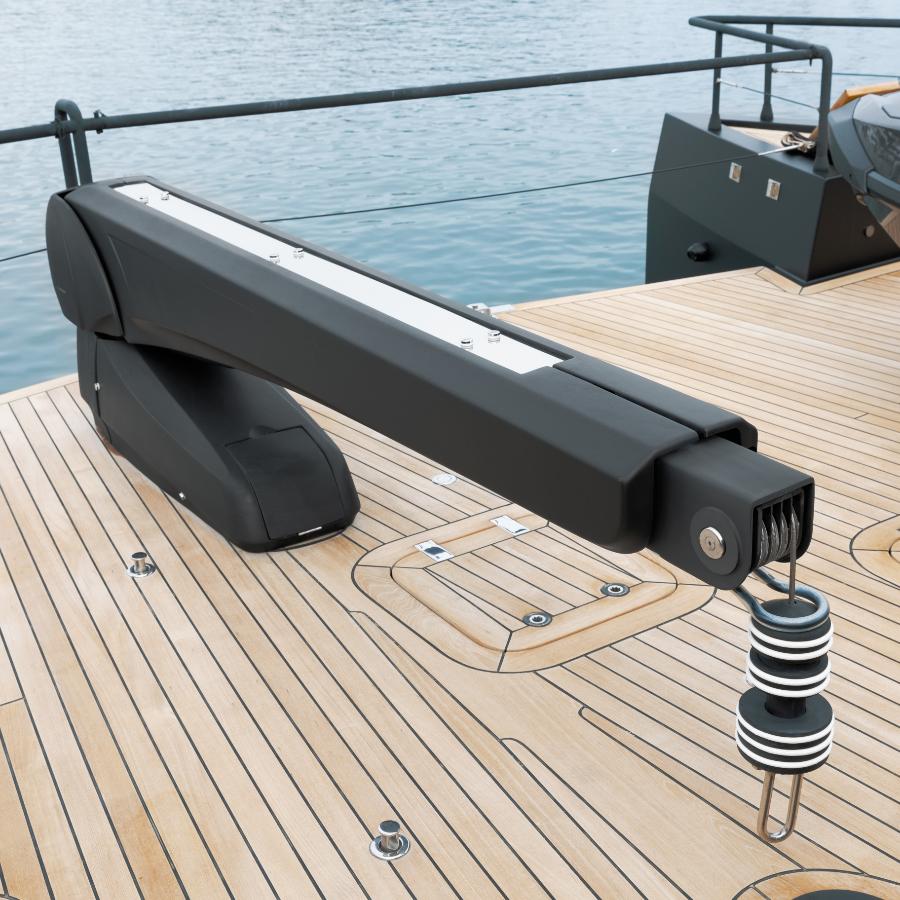

sistema di sollevamento jet sky per yacht

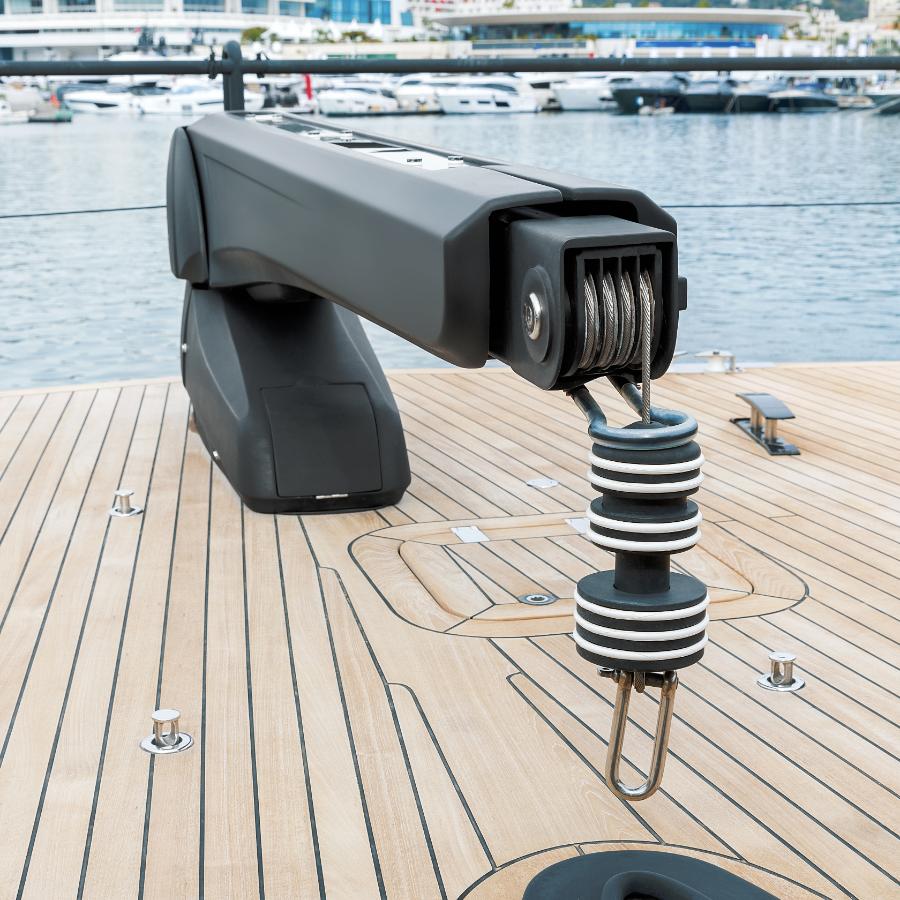

gru capace di sollevare 500 kg di peso per barche e yacht

gru per barca a motore da installare sul flybridge G 509

Besenzoni Gru per yacht installabile sul flybridge G509 carenature bianche contrappeso

Besenzoni Gru per yacht installabile sul flybridge G509 carenature bianche pulsantiera con cavo spiralato

Besenzoni Gru per yacht installabile sul flybridge G509 carenature bianche dettaglio pulsantira di comando

Besenzoni Gru per yacht installabile sul flybridge G509 braccio esteso

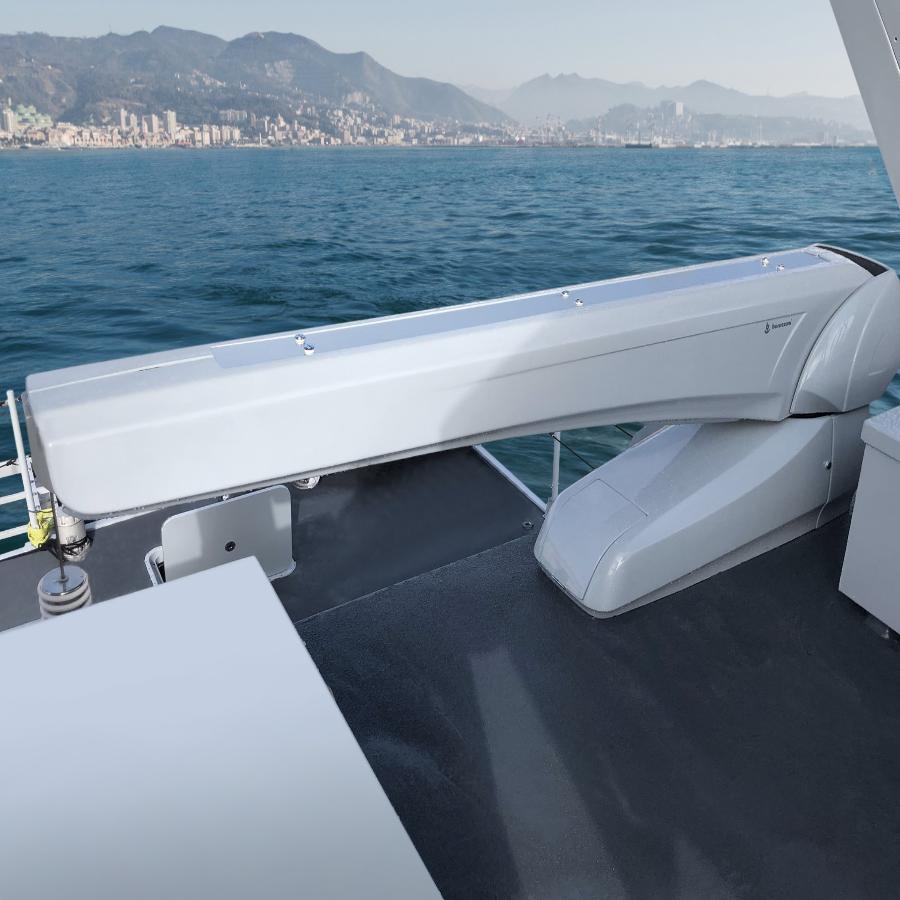

Besenzoni Gru per yacht installabile sul flybridge G509 braccio abbassato

Besenzoni Gru per yacht installabile sul flybridge G509 carenature bianche dettaglio della parte con aggancio al tender

G 509

Lifting capacity up to 500 kg

• Hydraulic slewing crane with telescopic boom
• Lifting Capacity from 480 up to 500 kg
• Powder coated stainless steel structure
• Molded fiberglass cowling for base and arm
• Hydraulic movement for rotation,boom extension, luffi ng and hoisting cable
• Slewing 180° ÷ 270°
• Counterweight with rubber inserts for cable tension
• Manual retaining system for cable weight whilst cruising
• Water resistant handheld wired control
• Manual pump for emergency
• Warning buzzer signals when crane is in motion
